SteriPad perforated separator pads
for industrial autoclaves
Used as dividers of products' layers while sterilization process in autoclaves.
SteriPad is made of thermally stabilized thermoplastics’ sheets, designed specifically for autoclaving processes
7000 hours is the time of thermal aging of this material at 135 ° C, the standard autoclaving temperature. This is more than 3 times higher than for layer pads, made of standard, non-modified thermoplastics.
According to laboratory tests:
Our company produces perforated pads for autoclaving according [to] customers’ specifications, of any shape, size and perforation pattern.
Now SteriPad perforated pads for autoclaving are used [by] more than 50 large canning plants in Russia and CIS countries.
Now SteriPad perforated pads for autoclaving are used [by] more than 50 large canning plants in Russia and CIS countries.
Benefits of using SteriPad perforated pads for autoclaving
Minimization of abrasive impact
The possibility of using delicate packaging
Uniform distribution of weight per unit of production
Minimization of product damage
Uniformity of product heating due to the ordering of coolant flows
Products’ quality stabilization
The possibility of using automatic layer-by-layer loading and unloading of the basket
Reduction of time and labor costs
Layer-by-layer uniform placement of products in the basket
Maximization of autoclave loading capacity
INCREASING PRODUCTION EFFICIENCY
What can be used instead of StriPad perforated pads for autoclaving?
Do not use gaskets at all and load products in bulk
Uneven heating and reduced product quality.
Higher percentage of packaging defects
Higher percentage of packaging defects
Use stainless steel pads
Very high cost.
High specific gravity, difficulties with manual loading
High specific gravity, difficulties with manual loading
Use pads of regular, non-modified thermoplastics
Large deformations during heating. Short service life
Absorption of water and abrasive that damage the packaging
Absorption of water and abrasive that damage the packaging
Use aluminum pads
Easily deformed without the possibility of restoring the shape
SteriPad perforated pads for autoclaving offer optimal cost / performance ratio
Characteristics
Key properties
Water absorption
Flammability (3/6 mm)
DIN EN 62
UL 94
%
—
<0,1
HB
Mechanical properties
Tensile strength
Elongation at break
E-modulus
Impact strength (Charpi)
Shore hardness
DIN EN ISO 527
DIN EN ISO 527
DIN EN ISO 527
DIN EN ISO 179
MPa
DIN EN ISO 868
%
MPa
kJ/m²
scale D
<0,1
Thermal properties
>50
1300
Thermal conduction
4,0
Specific heat capacity
Linear thermal elongation
Working temperature (long-term)
72
W/m*K
DIN 52612-1
kJ/kg*K
10⁻⁶ K⁻¹
°C
°C
DIN 52612
DIN 53752
0,20
1,70
Heating in the oven
120 — 190
Heating in the oven
0 — 135
150
Working temperature (short-term)
Design
For longer basket
970 Х 1060
970 Х 1060
Perforation pattern — 30 Х 34 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
740 Х 870
Perforation pattern — 30 Х 34 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
770 Х 806
Perforation pattern — 50 Х 17 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
Perforation pattern — 50 Х 50 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
810 Х 810
740 Х 740
Perforation pattern — 30 Х 34 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
Perforation pattern — 30 Х 34 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
920 Х 760
Custom
Any perforation pattern
Any hole diameter
Any hole diameter
Perforation pattern — 30 Х 30 mm
Hole diameter — 20 mm
Hole diameter — 20 mm
Прокладка круглая
D = 940
D = 940

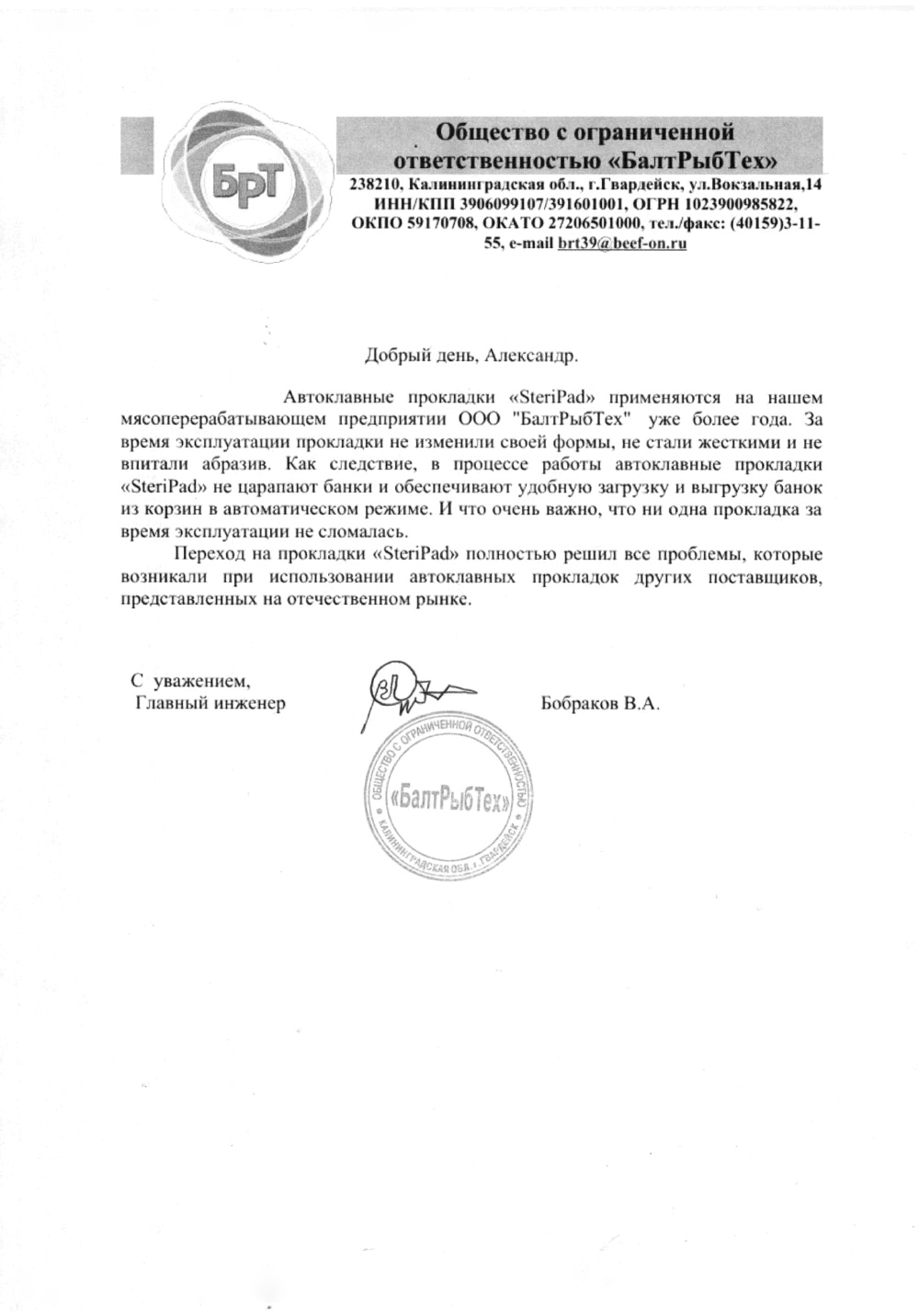

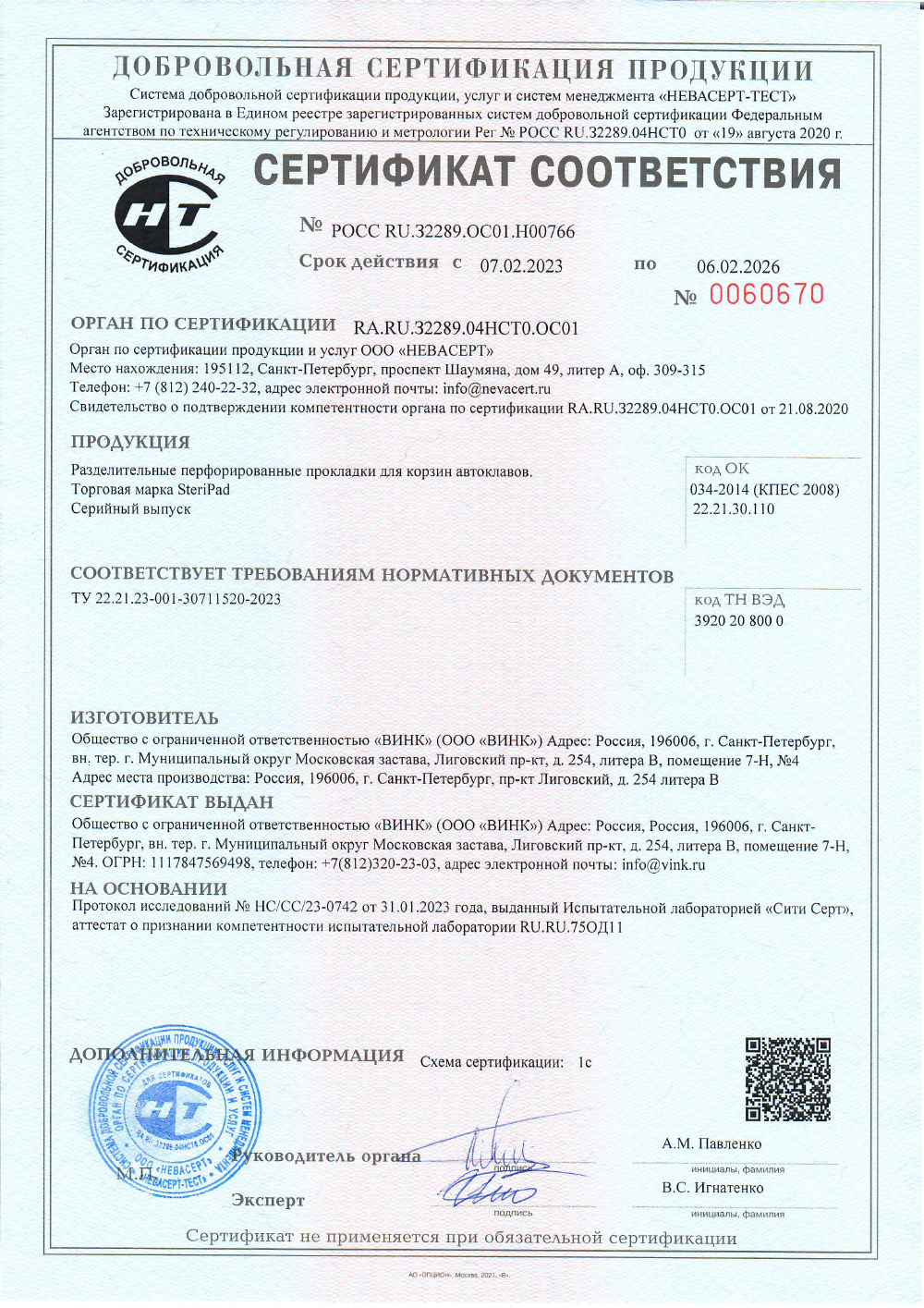

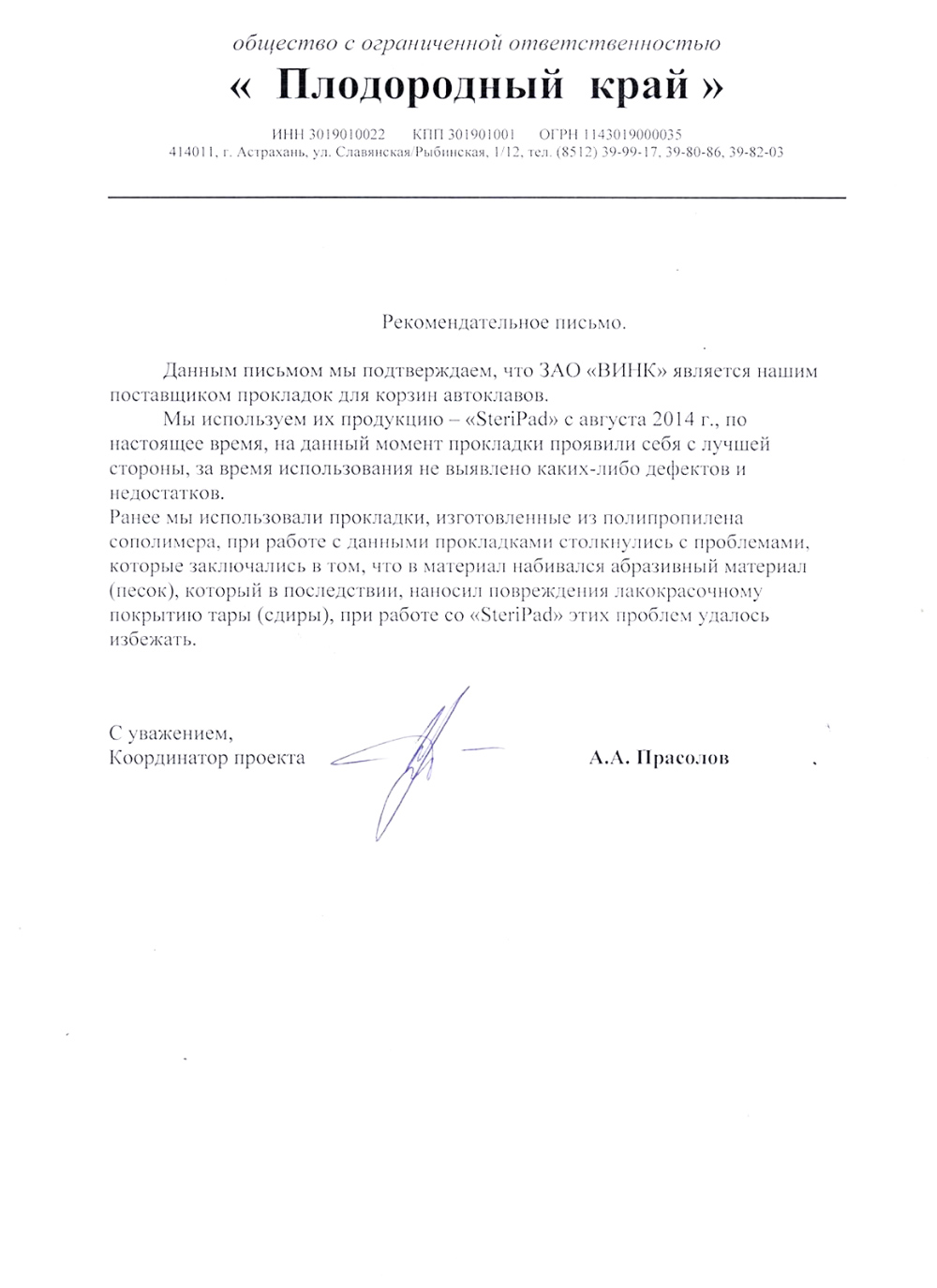

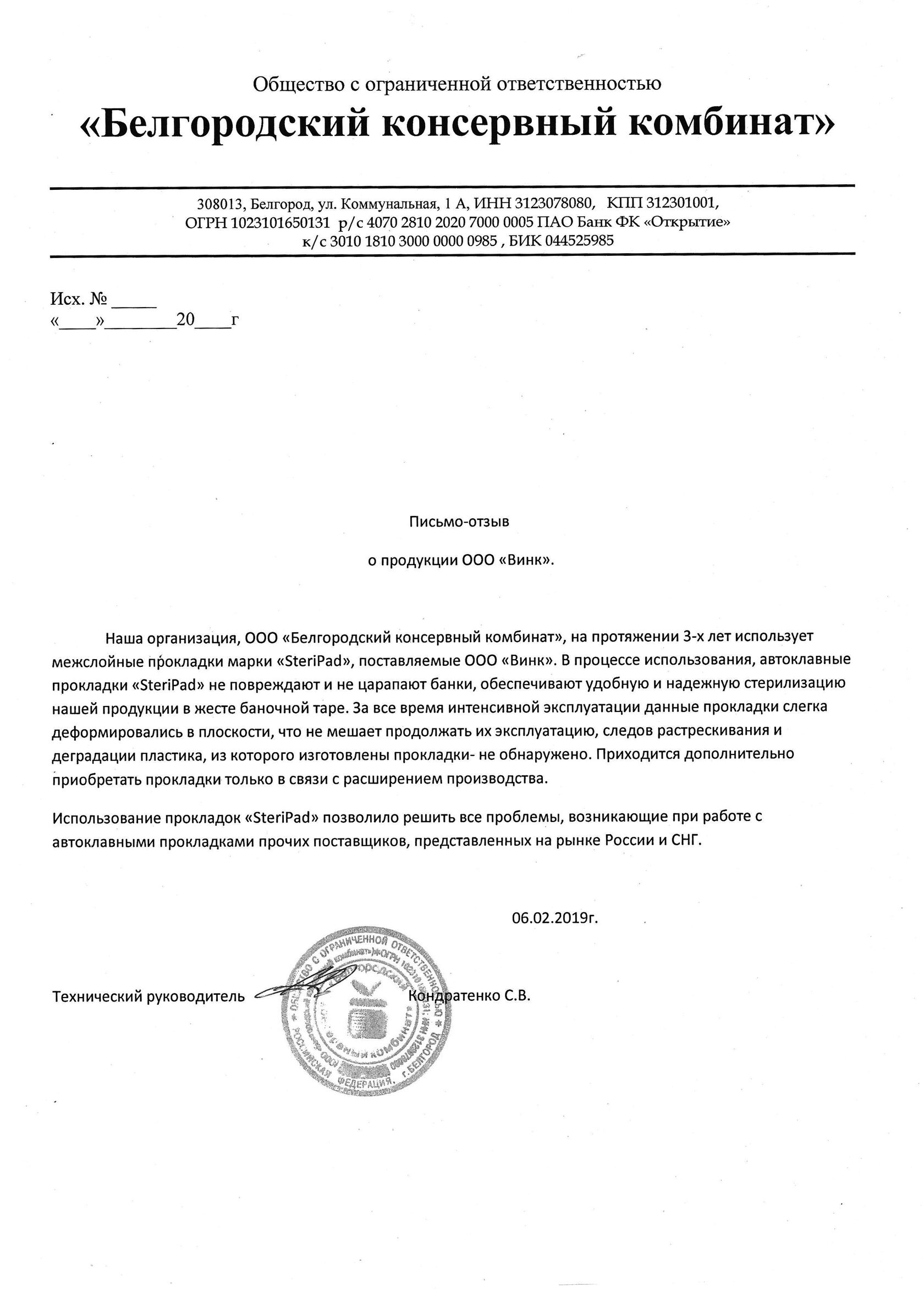

Certificates and recommendations
